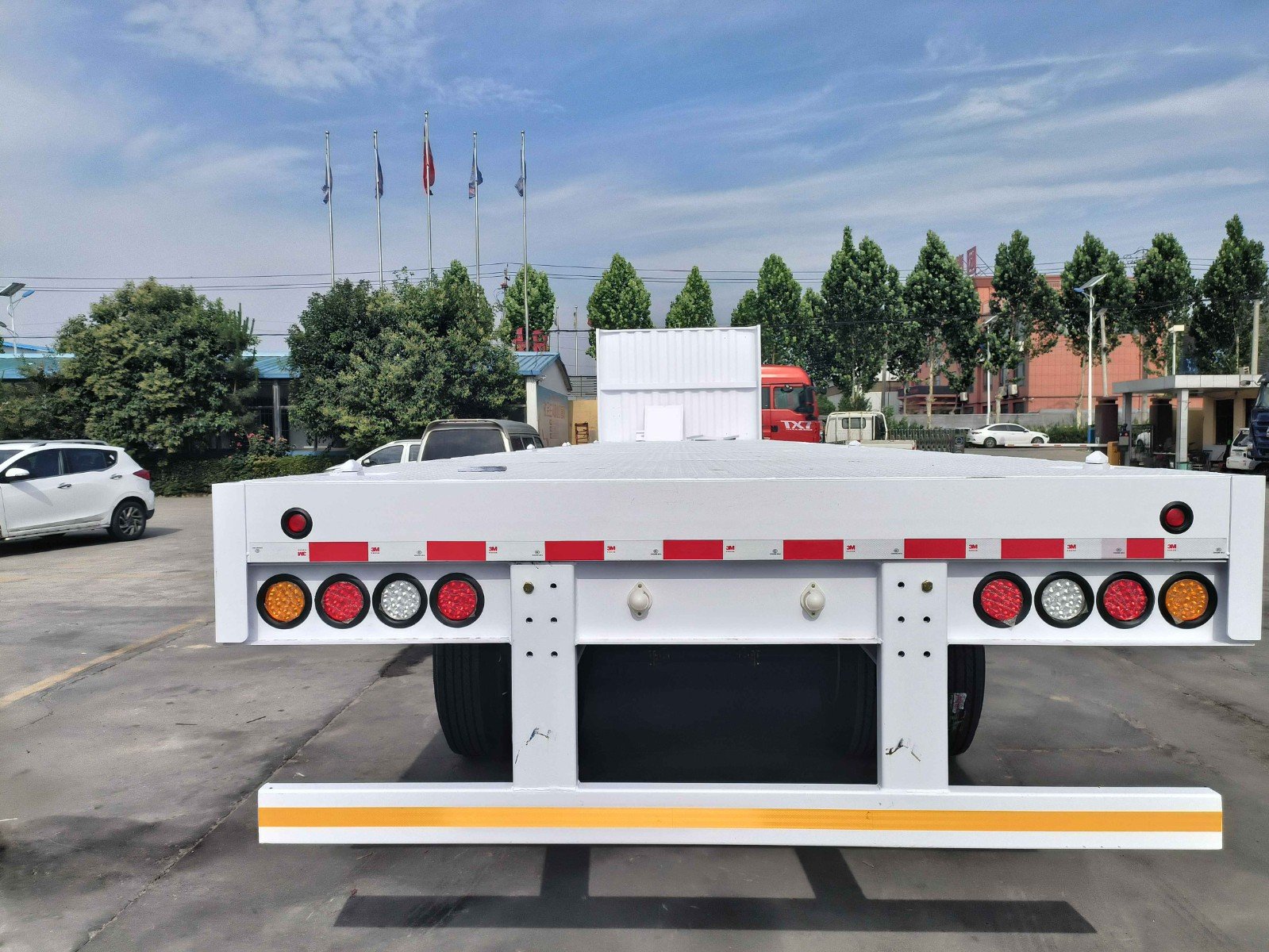

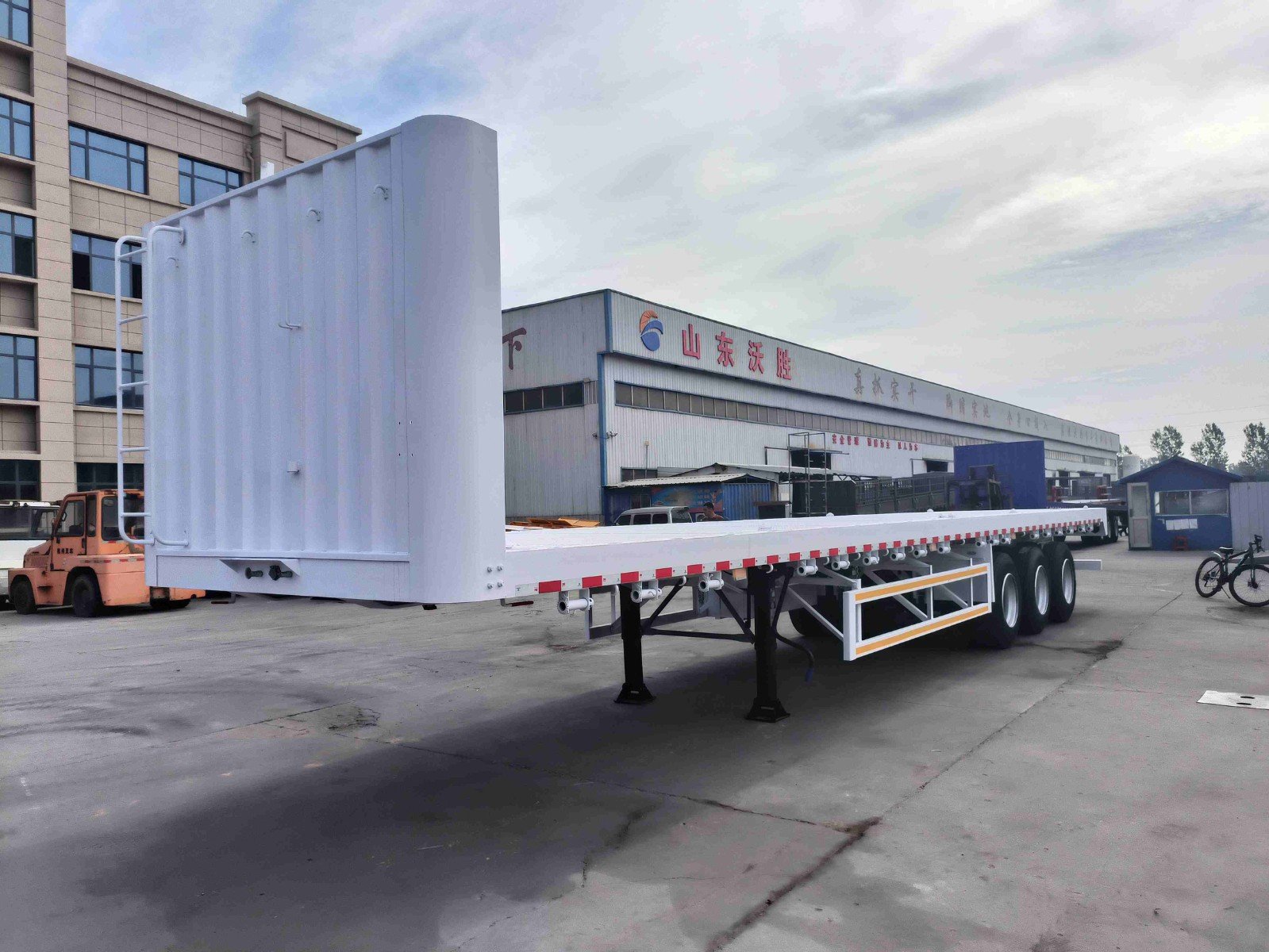

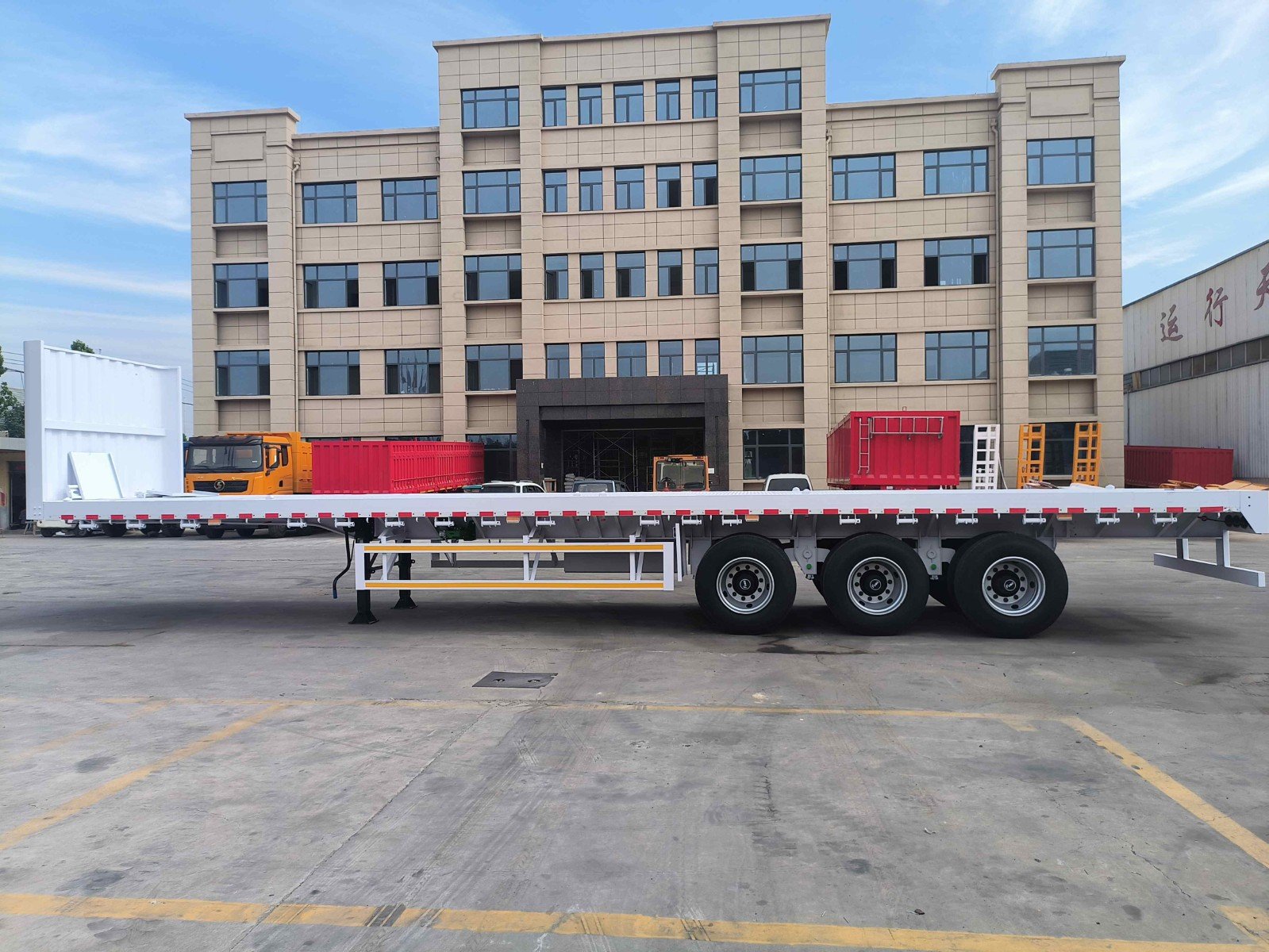

Flatbed Semi Trailer
The Flatbed Trailer is the main product of our company. It use high stength full thickness Steel, titanium content of 0.98‰, which ensure Beam and frame’s toughness and strength. The strong Loading Capacity, 30-100 Tons Loading Range.
1.The main beam adopts fully automatic submerged arc welding, the whole vehicle is shot blasted and rust-proof, and the floor is a 3mm thick anti-skid plate
2.The whole frame of the flatbed trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
3.We adopt world famous brand of parts, like Fuwa axle, BPW axles, JOST landing gear, WABCO braking valve etc. The axles are equipped with WABCO emergency brake valves, and the double brake air chambers also widen the pads.
Details
Packing and Delivery
Product specification
| Flatbed Semi Trailer Specification | ||
| 20FT FLATBED SEMI TRAILER | 40FT FLATBED SEMI TRAILER | 45FT FLATBED SEMI TRAILER |
| Brand: Wosheng | Brand: Wosheng | Brand: Wosheng |
| 20ft container or cargo loading | 1*40ft/2*20ft Container or cargo loading | 1*40ft/1*45ft container or cargo loading |
| Loading Capacity: 20 - 60 Tons | Loading Capacity: 30 - 80 Tons | Loading Capacity: 30 - 80 Tons |
| Gooseneck Type: Yes | Gooseneck Type: Yes | Gooseneck Type: Yes |
| Tandem Type: Yes | Tandem Type: Yes | Tandem Type: Yes |
| Main Beam | ||
| Material: Q345/T700 | Material: Q345/T700 | Material: Q345/T700 |
| Upper Plate Thickness: 12mm | Upper Plate Thickness: 16mm | Upper Plate Thickness: 16mm |
| Middle Plate Thickness: 6mm | Middle Plate Thickness: 10mm | Middle Plate Thickness: 10mm |
| Lower Plate Thickness: 14mm | Lower Plate Thickness: 18mm | Lower Plate Thickness: 18mm |
| Height: 500mm | Height: 500mm | Height: 500mm |
| Platform Thickness: 2.5mm | Platform Thickness: 3mm | Platform Thickness: 3mm |
| Product Dimension | ||
| L 7000mm*W 2500mm*H 1570mm | L 12400mm*W 2500mm*H 1570mm | L 13950mm*W 2500mm*H 1600mm |
| Axles | ||
| 3 Axles *13/16 Ton | 3 Axles *13/16 Ton | 3 Axles *13/16 Ton |
| FUWA/BPW/Other | FUWA/BPW/Other | FUWA/BPW/Other |
| Tire | ||
| 12R22.5 (8/12 Pieces) | 12R22.5 (8/12 Pieces) | 12R22.5 (8/12 Pieces) |
| Linglong/Triangle/Double-Coin/Bridgestone/ | Linglong/Triangle/Double-Coin/Bridgestone/ | Linglong/Triangle/Double-Coin/Bridgestone/ |
| Other Brand | Other Brand | Other Brand |
| Rim | ||
| 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum |
| Leaf Spring | ||
| 90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs |
| King Pin | ||
| 50#(2")/90#(3.5") JOST/Other Brand | 50#(2")/90#(3.5") JOST/Other Brand | 50#(2")/90#(3.5") JOST/Other Brand |
| Landing Gear | ||
| 28 Ton Two Speed,JOST/Other Brand | 28 Ton Two Speed,JOST/Other Brand | 28 Ton Two Speed,JOST/Other Brand |
| Twist Lock | ||
| 4 Sets | 12 Sets | 12 Sets |
| Vehicle Painting | ||
| Electrophoresis painting | Electrophoresis painting | Electrophoresis painting |
