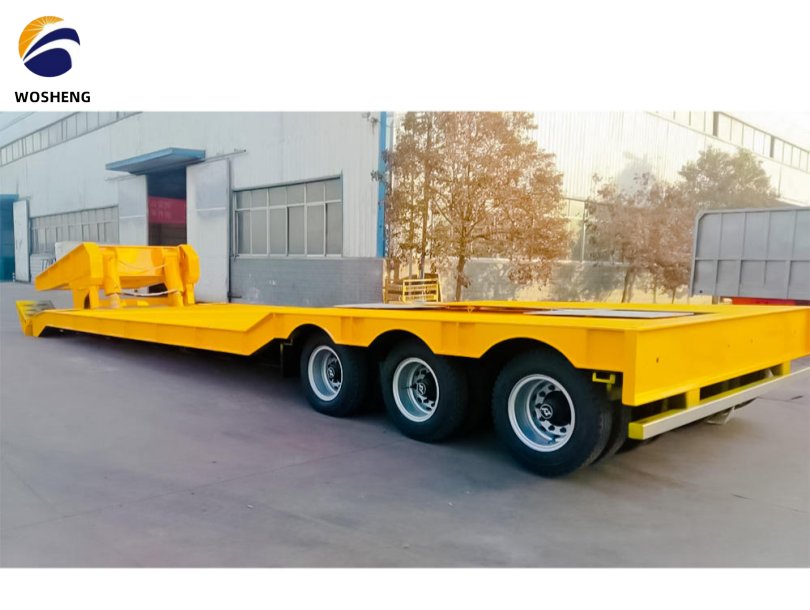

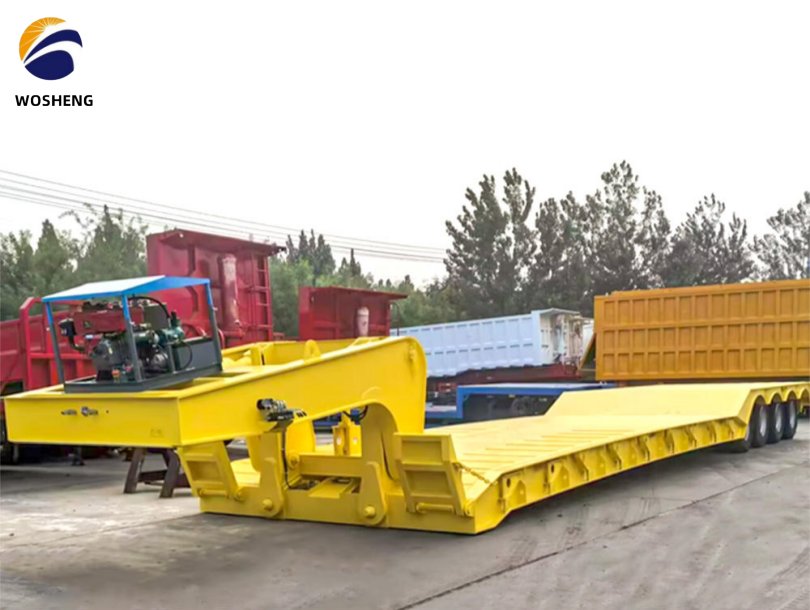

Detachable Gooseneck Low Bed trailer

Hydraulic Extendable lowboy semi trailer

1. The detachable gooseneck trailer is also called the front loader semi trailer. It looks similar with low-bed semi trailer, but Detachable gooseneck semi trailer without rear ladder , and detacheble gooseneck semi trailer has a lower deck surface and stronger bearing capacity.

2.The Detachable Gooseneck Low Bed trailer is a removable or detachable gooseneck trailer, and it has a low center of gravity, good stability, high strength and other characteristics which improve the loading capacity.

3.Some equipment installed in the gooseneck of the semi-trailer can be removed or connected by workers, so construction machinery can unload from the front of the semi-trailer. This trailer is mainly suitable for large construction machinery.

Product specification：

Dimension

11000mm-16000mm x 3000-3500mm x 1650 mm

Loading Capacity

20-150 T

Axle

13T, 16T, BP/FUWA/LUEN

Rim

6.5-20/7.5-20/8.00-20/8.5-20

Suspension

Tri-axle Mechanical suspension or Air Suspension (BPW brand)

King Pin

JOST brand 2.0 or 3.5 inch (bolted or welded type)

Main Beam

Height:450mm-580mm Q354B steel

Side Beam

16mm-30mm "I" Steel

Ladder

Manually operated or Hydraulic type

Gooseneck

Hydraulic detachable gooseneck

Brake Chamber

WABCO (brake system)

ABSWABCO

Light

LED light

Voltage

24V

Surface Coating

Sandblasted, anti-rust chassis surface is avaible with 1 layer of anticorrosive primer and 2 layers of top coats.
