fence trailer side wall semi trailer
The side wall cargo semi-trailer are used to load various products and materials such as sand, bags, poultry and more. There are also some bulk cargoes that are very widely used in the transportation industry.
Industry attributes
| Lead Time | 15-30days |
| Supply Capacity | 100 pieces/month |
| Place of Origin | China |
Inquire now
- Product Details
- Online Message
- Related products
product details
Sidewall Semi Trailer
Sidewall Semi Trailer are very widely used for medium and long-distance transportation of normal and heavy goods and bulk goods. Its diverse applicability has made it the first choice for medium and long-distance freight vehicles.

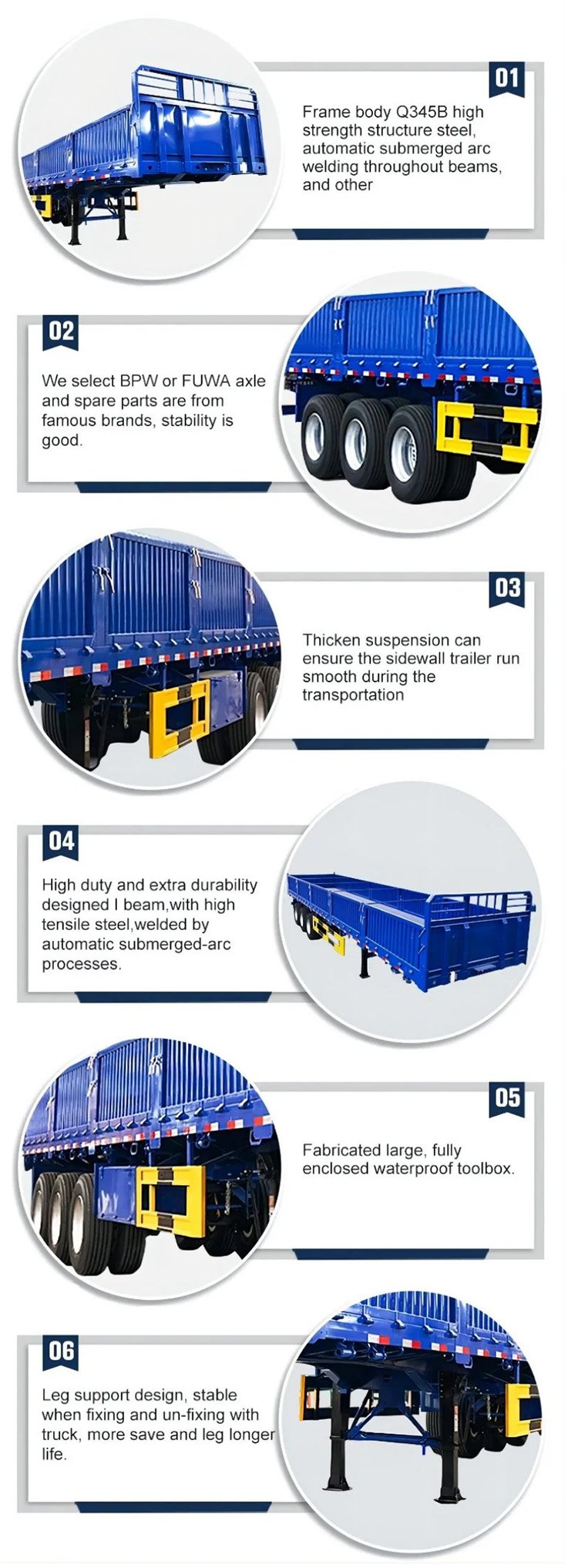

Sidewall Semi Trailer image

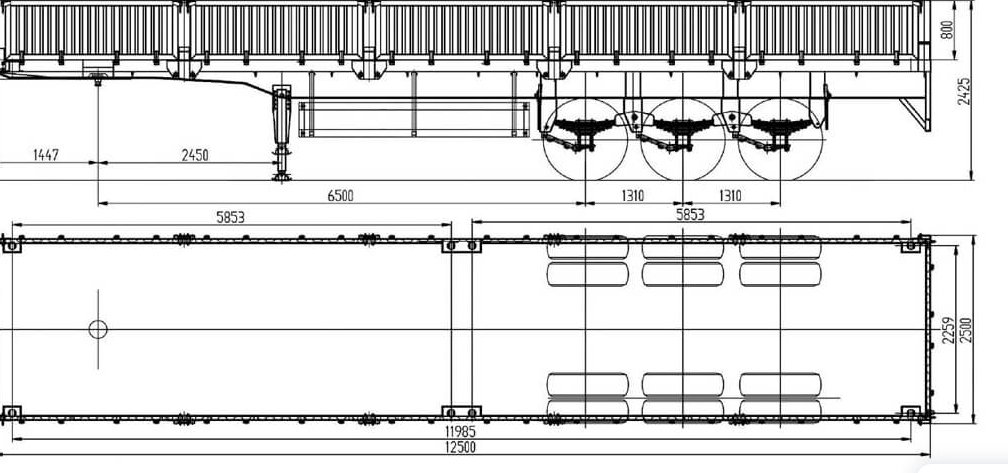

Sidewall Semi Trailer specification
Sidewall Semi Trailer specification
| 2 Axles | 3 Axles | 4 Axles |
| Brand:Wosheng | Brand: Wosheng | Brand: Wosheng |
| Loading Capacity: 30-60T | Loading Capacity: 30-80T | Loading Capacity: 40-100T |
| Gooseneck Type: Optional | Gooseneck Type: Optional | Gooseneck Type: Optional |
| Main Beam | ||
| Material: Q345/T700 | Main Beam Material: Q345/T700 | Main Beam Material: Q345/T700 |
| Upper Plate Thickness: 12mm | Upper Plate Thickness: 16mm | Upper Plate Thickness: 18mm |
| Middle Plate Thickness: 6mm | Middle Plate Thickness: 10mm | Middle Plate Thickness: 12mm |
| Lower Plate Thickness: 14mm | Lower Plate Thickness: 18mm | Lower Plate Thickness: 20mm |
| Main Beam Height: 500mm | Main Beam Height: 500mm | Main Beam Height: 500mm |
| Product Size | ||
| L*W: 13000mm*2550mm | L*W: 13000mm*2550mm | L*W: 13000mm*2550mm |
| Side Wall Height: 600mm-1700mm | Side Wall Height: 600mm-1700mm | Side Wall Height: 600mm-1700mm |
| Axle | ||
| 2 Axles *13 Ton | 3 Axles *13/16 Ton | 4 Axles *13/16 Ton |
| FUWA/BPW/Other | FUWA/BPW/Other | FUWA/BPW/Other |
| Tire | ||
| 12R22.5 (8 Pieces) | 12R22.5 (12 Pieces) | 12R22.5 (16 Pieces) |
| Linglong/Triangle/Double-Coin/ | Linglong/Triangle/Double Coin/ | Linglong/Triangle/Double-Coin/ |
| Bridgestone/Other Brand | Bridgestone/Other Brand | Bridgestone/Other Brand |
| Rim | ||
| 9.00*22.5 (8 Pieces) Steel/Aluminum | 9.0*22.5 (12 Pieces) Steel/Aluminum | 9.00*22.5 (16 Pieces) Steel/Aluminum |
| Leaf Spring | ||
| 90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs |
| King Pin | ||
| #50(2")/#90(3.5"), JOST/Other Brand | #50(2")/#90(3.5"), JOST/Other Brand | #50(2")/#90(3.5"), JOST/Other Brand |
| Landing Gear | ||
| 28 Tons Two Speed | 28 Tons Two Speed | 28 Tons Two Speed |
| JOST/Other Brand | JOST/Other Brand | JOST/Other Brand |
| Vehicle Painting | ||
| Electrophoresis painting | Electrophoresis painting | Electrophoresis painting |
