Rear Dump Semi Trailer Hydraulic Trailer
Rear Dump Semi Trailer frame chassis of this series adopts the through-beam structure, and the frame structure includes straight and gooseneck types. The overall strength is high, the weight is light, the appearance is beautiful, and the use is safe and reliable.
Industry attributes
| Lead Time | 15-30days |
| Supply Capacity | 100 pieces/month |
| capacity | 60-80T |
Inquire now
- Product Details
- Online Message
- Related products
product details

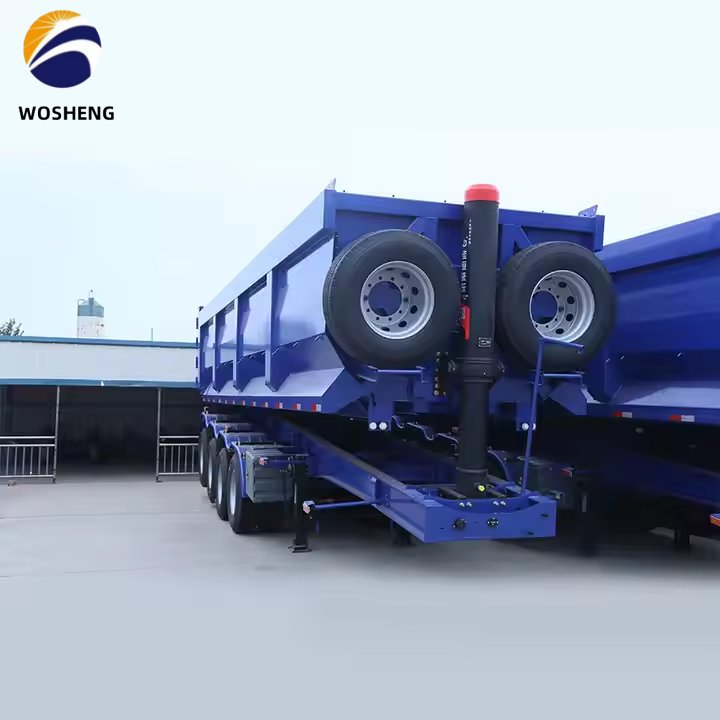

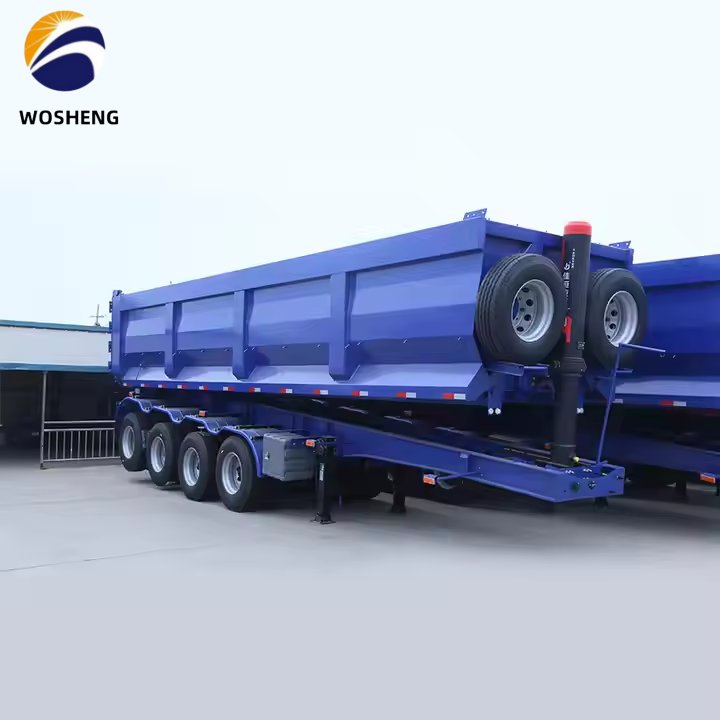

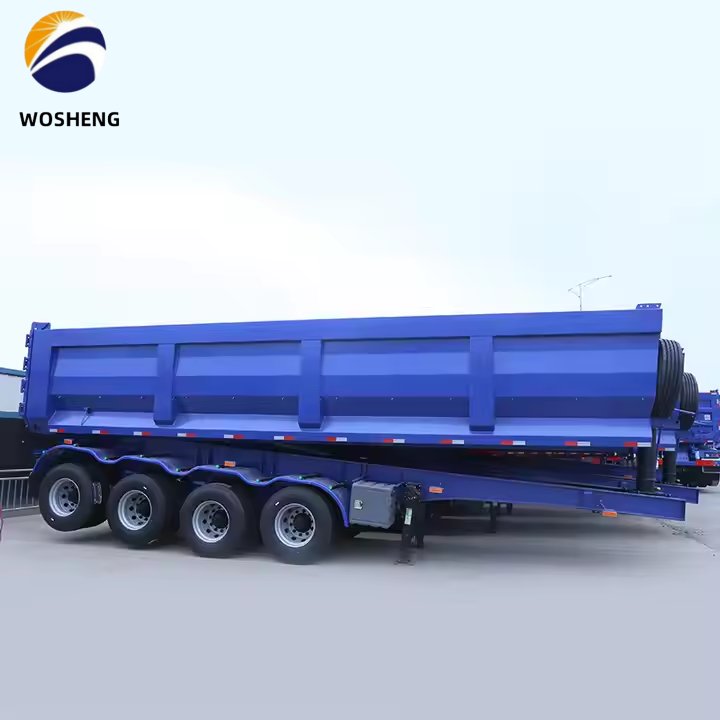

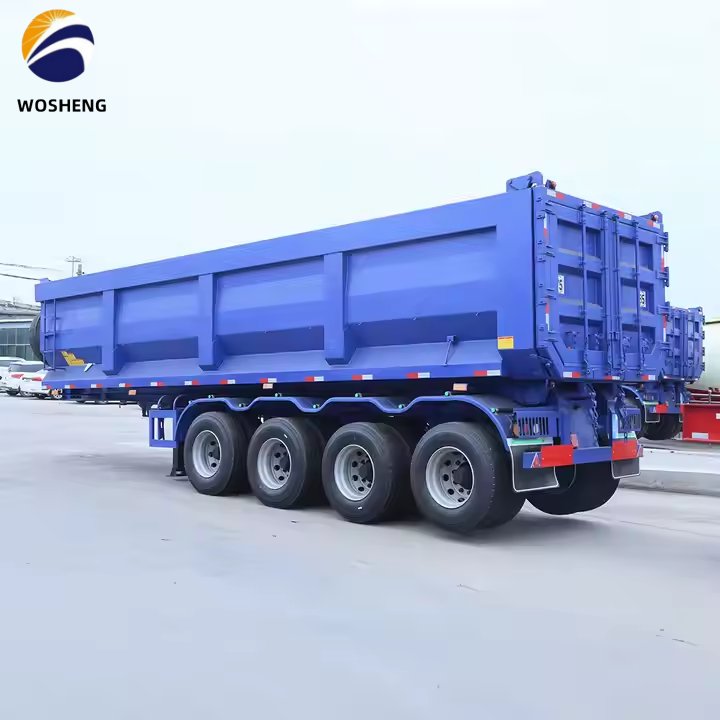

Rear Dump Semi Trailer
The whole frame of the dump trailer should be shot blasted to effectively eliminate welding residues. The vehicle body is electrophoretic coating, resistant to coating, and the coating effect can reach more than 10 years.
Rear dump semi-trailers are designed to make unloading easier. After the The back of the trailer is locked, sand can be loaded
The rear dump trailer is also called a tipper trailer or tipping trailer. They are used to load sand, stone, coal and other solid building materials or industrial raw materials.
Rear Dump Semi Trailer specification
Dump Tipper Semi Trailer | ||||
Application | Transport all kinds of Mineral/Coal/Stone/Sand/Cargo Loading | |||
Model | 2 axles tipper trailer | 3 axles tipper trailer | 4 axles tipper trailer | 5 - 6 axles tipper trailer |
Bucket capacity | 25 cubic meters | 30/35/40 cubic meters | 40 cubic meters | 45 cubic meters |
Dimension (mm) | 8500*2500*3500 | 10000x2500x3800 | 10500*2500*3900 | 11500*2500*3950 |
Rim and tires | 12.00R22.5 tires | 12.00R22.5 tires | 315/80R22.5 tires | 12.00R20 tires |
| HYVA brand | HYVA brand | HYVA brand | HYVA brand |
Tipping box | T700 / Hardox | |||
| T700 / Q345B double plate | |||
Height:500mm | ||||
Upper Plate: 14mm | ||||
Middle Plate: 8mm | ||||
Lower Plate: 16mm | ||||
Axle | 13T/16T FUWA / BPW / L1 Wosheng Brand | |||
King Pin | JOST brand 2.0'' / 3.5'' bolt type king pin | |||
Landing Gear | 28T double speed JOST | |||
Suspension | Heavy duty mechanical suspension / Air bag / Bogies | |||
Pneumatic Braking System | RE 6 relay valve | |||
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 | |||
Light | LED light,24V,7ways(7 wire harness) | |||
| steel/aluminum | |||
Painting | 1 coat of anticorrosive prime, 2coats of final paint | |||
Any parts fitted could according to clients request, contact us to get more. | ||||

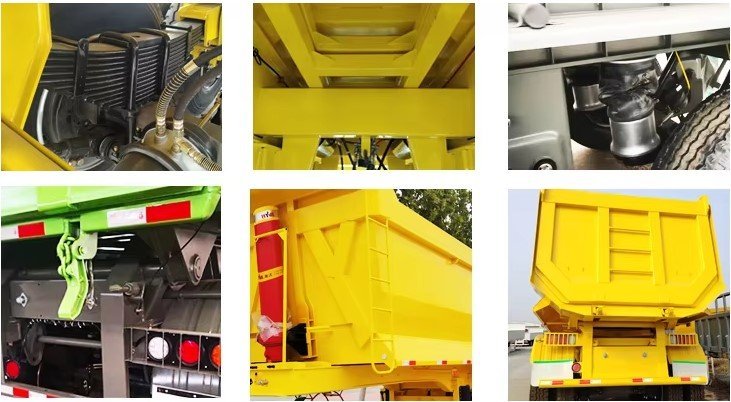

Detailed Photos
Suspention - Anti-Tire Abrasion

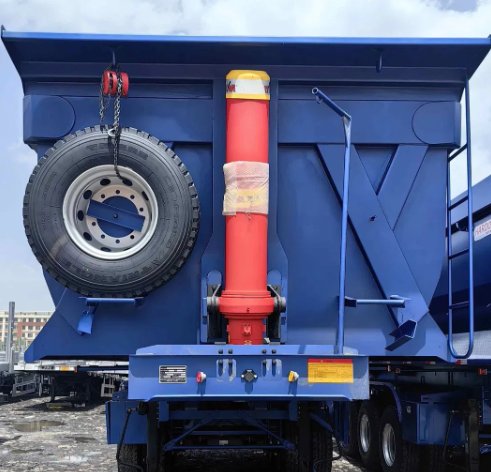

Hydraulic cylinders

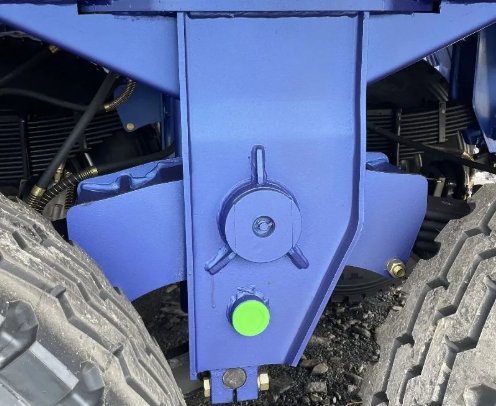

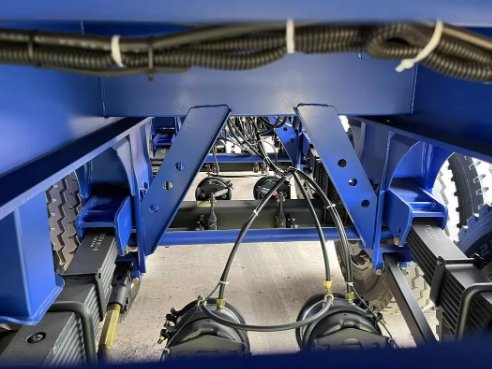

Suspension and break system

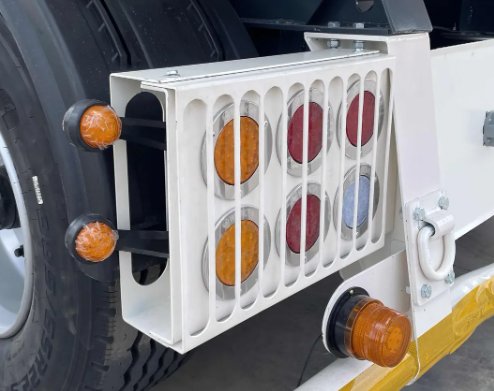

LED lamp with protective cover

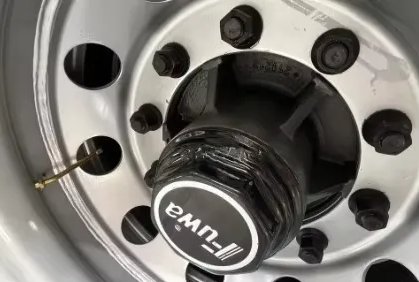

Axle :BPW/FUWA/Wosheng Axle optional.

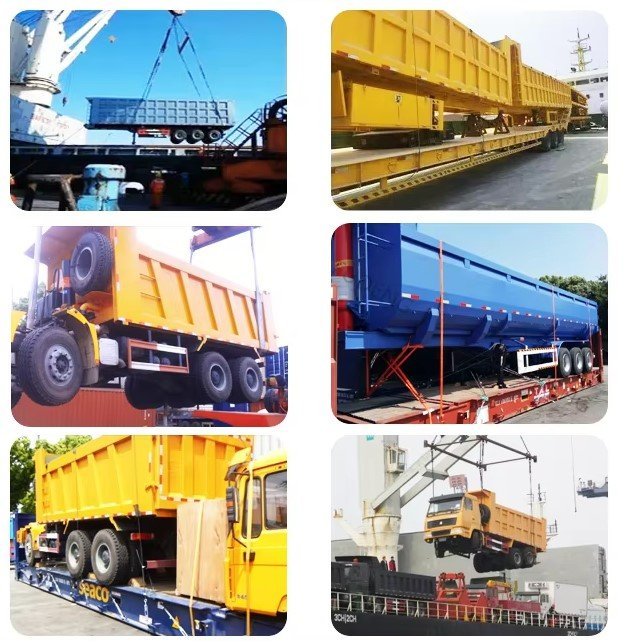

Packaging and Transportation
